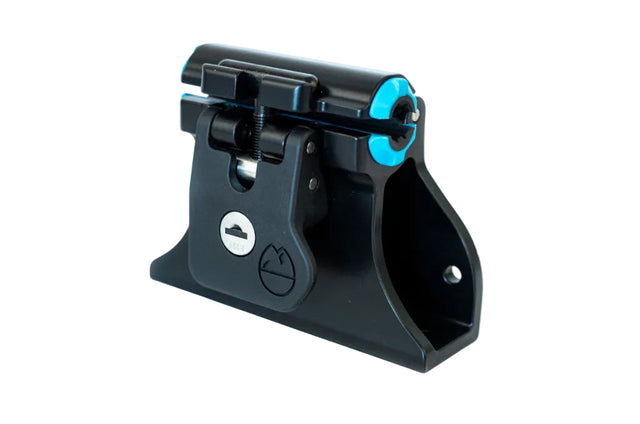

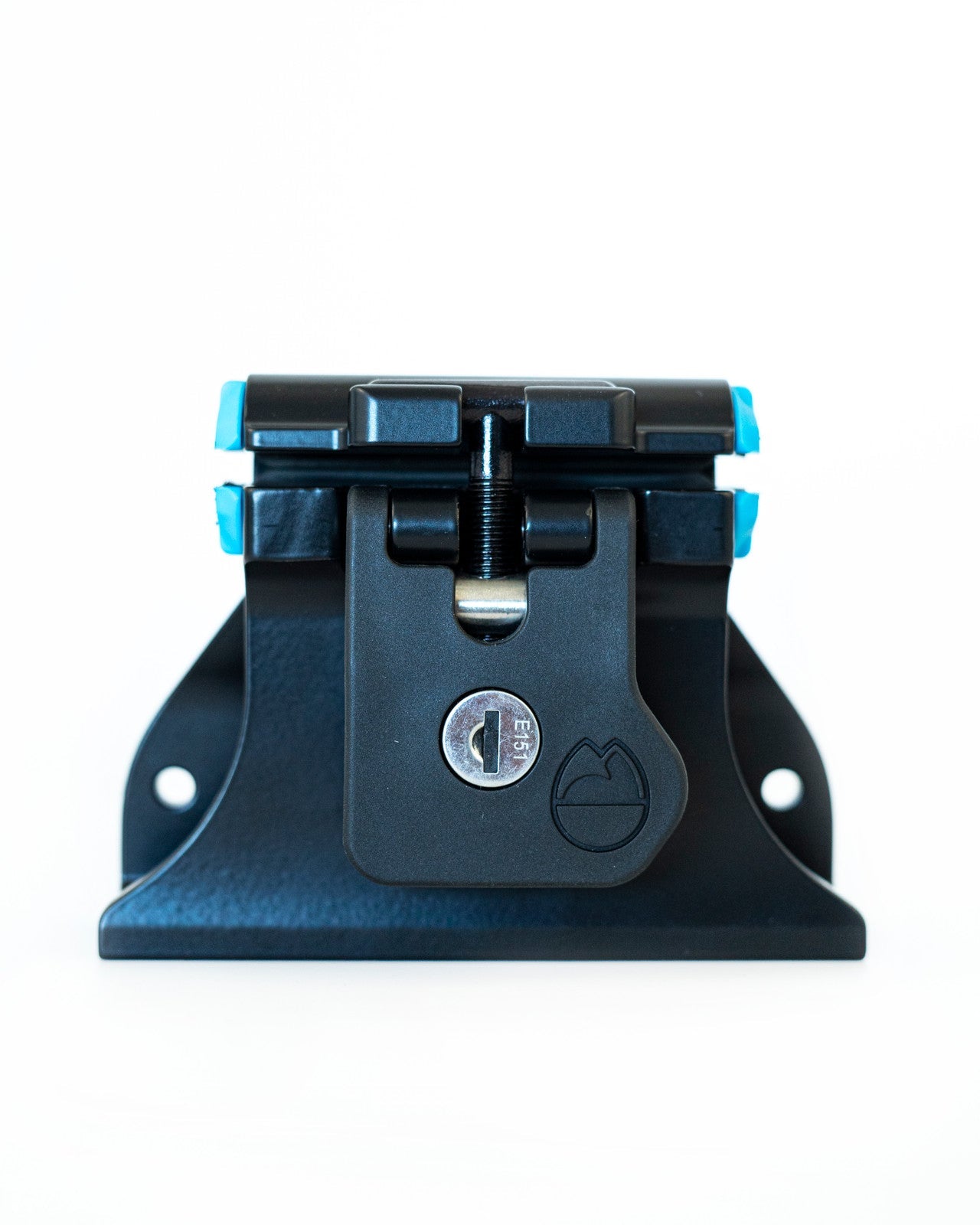

DropTop is our next-generation locking fork mount, refined from years of real-world use. Built for vans, utes and truck beds, it keeps road, gravel and MTB bikes secure inside your setup. We wanted to make this clean, simple and secure.

Hitch Size Guide

Add to cart

Store Lookup

Free shipping over $300

Lifetime Warranty

Spare Parts & Customer service

Summary and Specs

Add On expandable:

Capacity: 1

1

Fender Compatible: Yes

Yes

Hitch Size:

Weight:

Wheelbase: +30cm

+30cm

Lockable:

Maximum Tire Width: 5"

5"

Max weight per bike: 60 lbs / 27 kgs

60 lbs / 27 kgs

Min/max wheel size:

Tilt enabled:

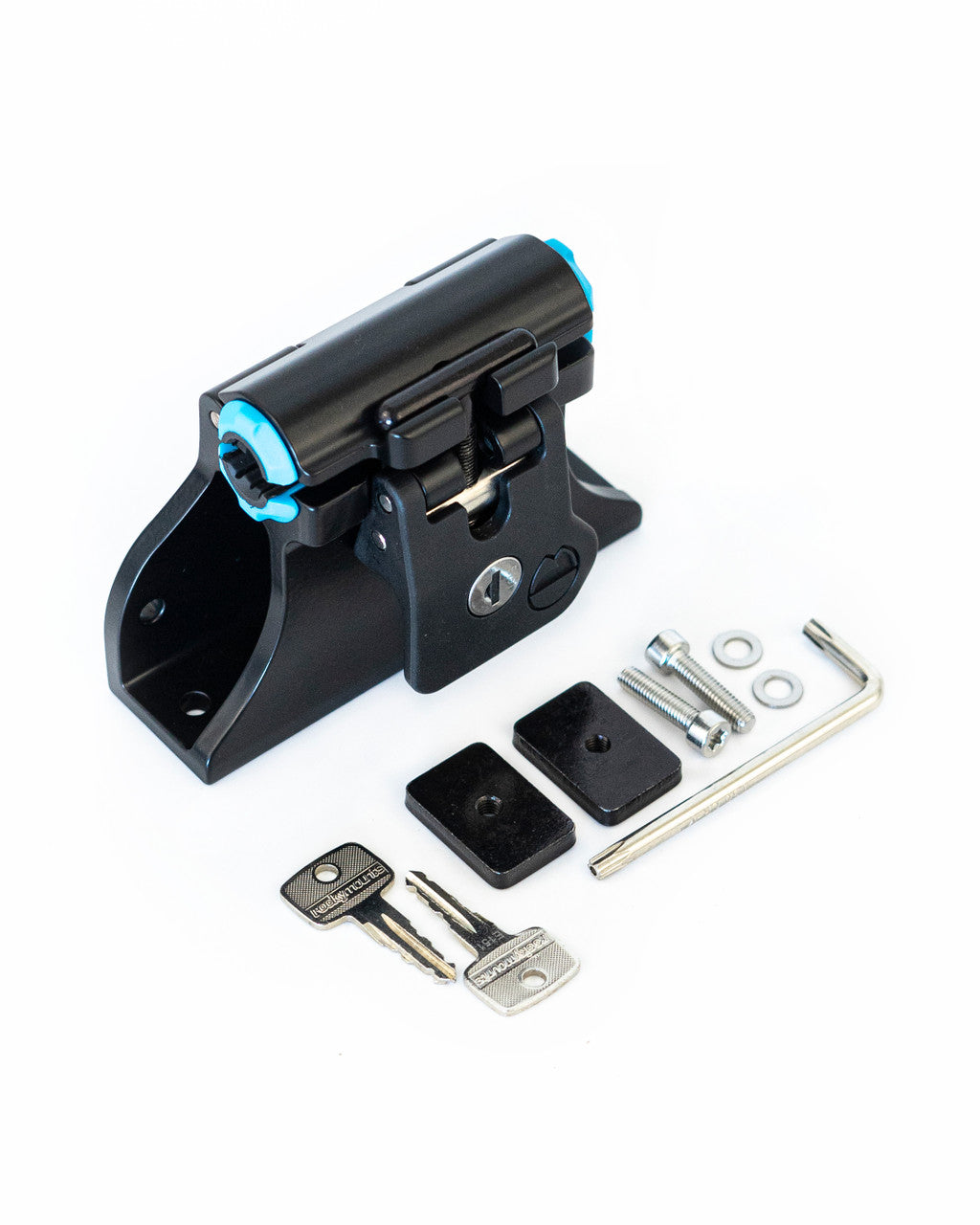

What's included:

(1) DropTop locking fork mount
(1) Lock core and keys
(1) Track hardware
(1) User manual

Yes

DropTop Instructions.pdf Fork Mount Dimension Chart 2022 A 1.pdf

- The only locking thru-axle track mount compatible with truck and van tracks
- Fits 12mm, 15mm, and 20mm thru-axles up to 110mm wide (20mm requires shim removal)
- Vertical and horizontal mounting options

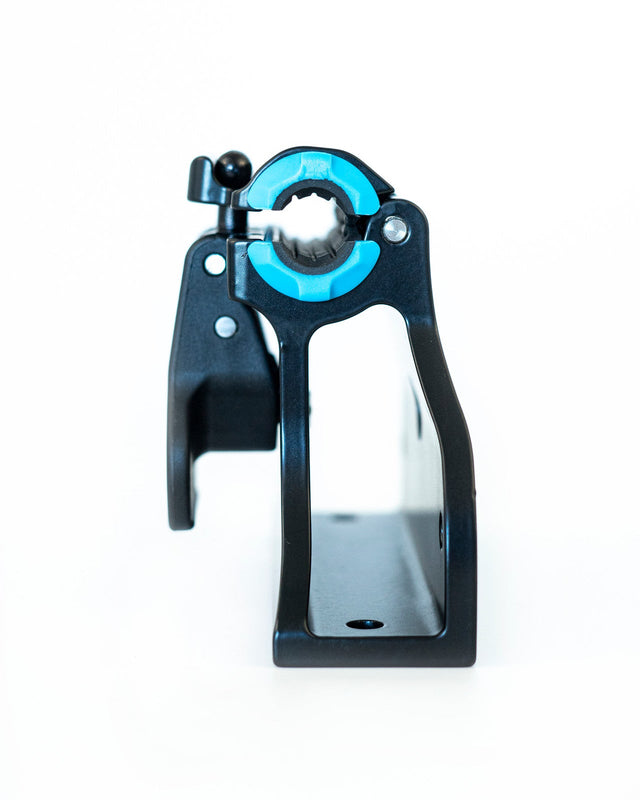

- TPU overmolded shim eliminates need to switch shims for 12mm or 15mm axles
- Anti-theft TPU surface provides friction to prevent axle removal when locked
- Compatible with quick release bikes using 9mm QR Dummy Axle (sold separately)
- Wide mouth opening for easy bike loading

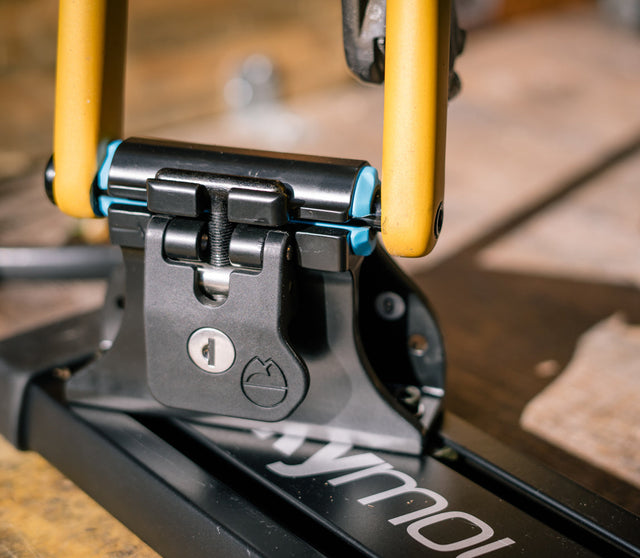

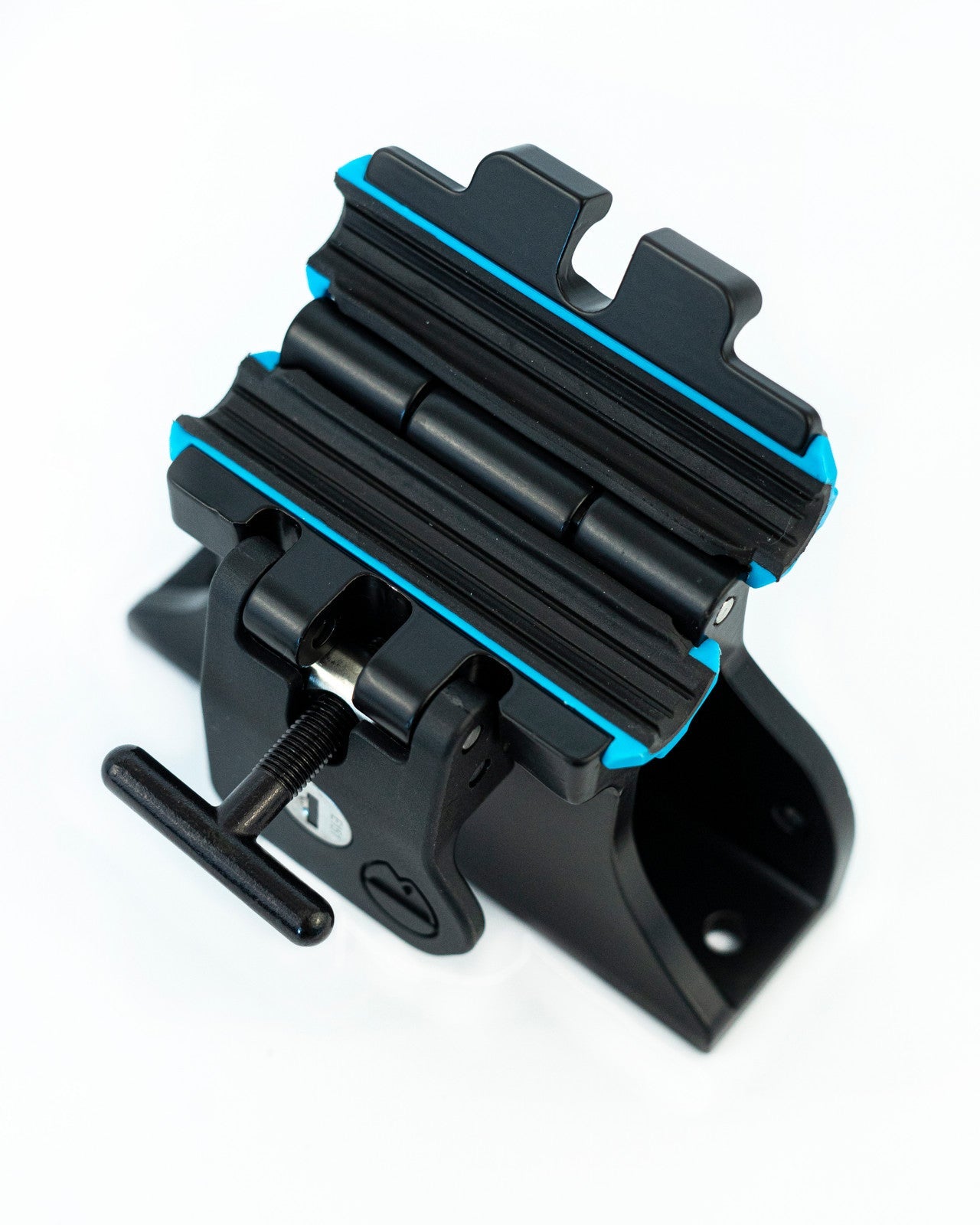

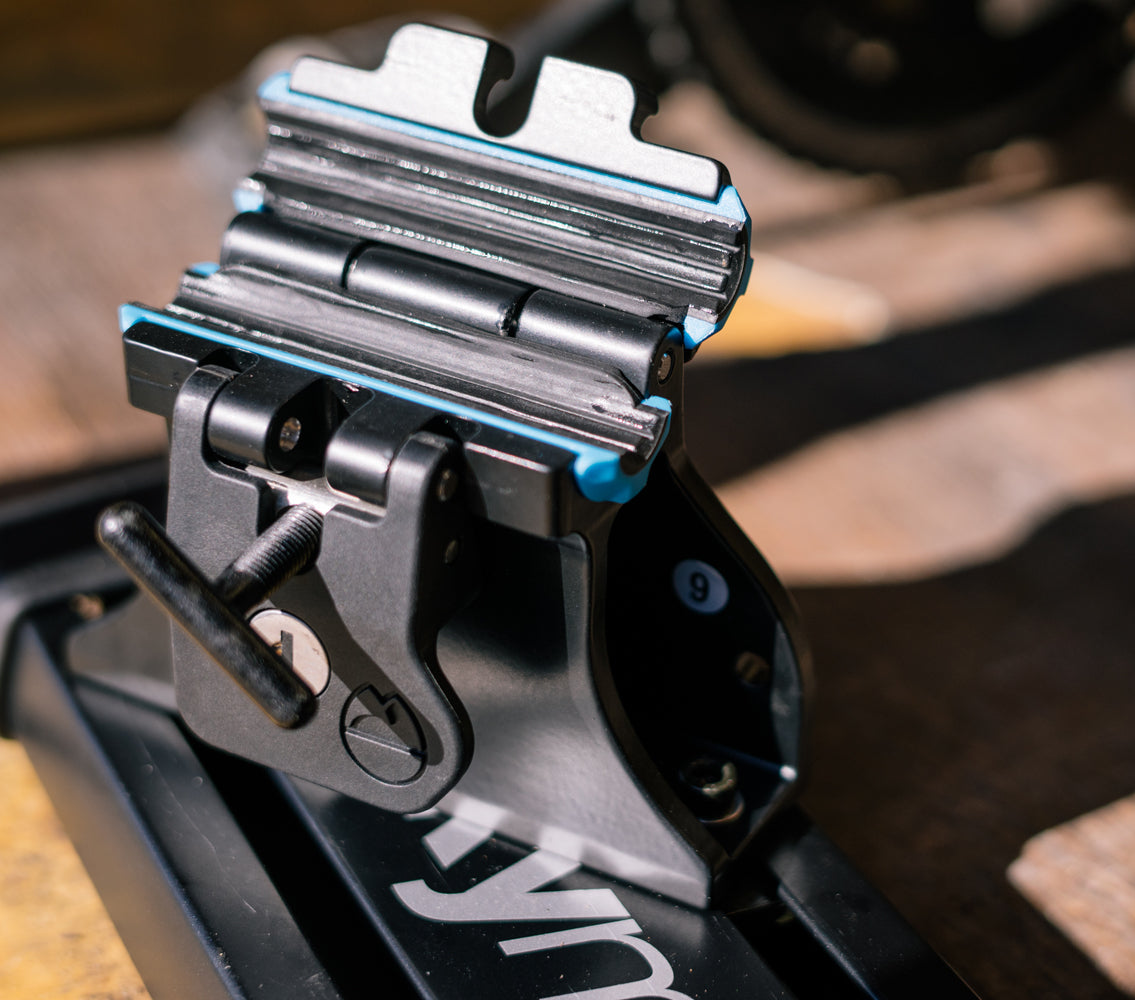

- Locking T-bolt adjusts for a tighter hold, securing the thru-axle when locked
- Carries 1 bike up to 45 lbs
- Fits all Toyota Tacoma and Tundra Bed Rails 2010-2024
- Track plates measure 24mm x 35mm x 6mm with M6 x 1mm tapped hole, installable in either orientation
- Not compatible with L-Track by USA Cargo Control without additional adapter plate

Specs
- Bike capacity: 1 bike
- Weight capacity: 45 lbs
- Track plate dimensions: 24mm x 35mm x 6mm
- Mounting hardware: M6 x 1mm tapped holes
- Compatible axle sizes: 12mm, 15mm (up to 110mm width)

Shipping Policy

Name: DropTop
Brand: Rocky Mounts
SKU: 10880
Price: 99.99 USD
Availability: InStock

We know you’re excited to hit the road, so we do our best to get your order out fast and keep shipping simple.

Standard Shipping (Lower 48 States)

Shipping costs are based on your order total:

Orders under $20 → $4.95
$21–$50 → $8.95
$51–$100 → $14.99
$101–$300 → $29.99
Orders +$300 → FREE shipping (if not considered oversize)

Outside the Lower 48

Alaska & Hawaii → We’ll ship at actual freight cost
Canada & International → Shipping is charged at actual freight cost

Fast Turnaround

Place your order by 12:00 PM MT and we’ll ship it the same business day. Most deliveries arrive within 3–7 business days and you’ll get a tracking email as soon as your order is on the way.

A Couple Things to Note

Oversize fees apply in addition to standard shipping when noted
Free shipping applies only within the lower 48 states

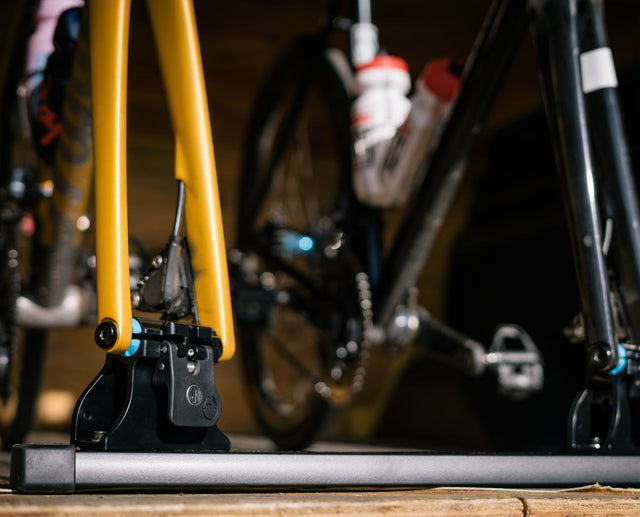

Made to Mount Anywhere.

Minimal profile. Maximum reliability.

Mount It and Forget It.

Built for custom layouts and creative installs, DropTop keeps your bike locked in without taking up unnecessary space.
Simple, secure fork mounting that stays out of the way and ready for every trip.

Any Bike. Any Axle.

Compatible with a wide range of fork standards, DropTop is built to fit modern bikes without the guesswork. Compatible with 12mm, 15mm, and 20mm thru-axles up to 110mm wide. Designed to keep your setup flexible across bikes and builds.
