DropTop Van and Truck Mount

DropTop

7

10880

AUD

$145.00

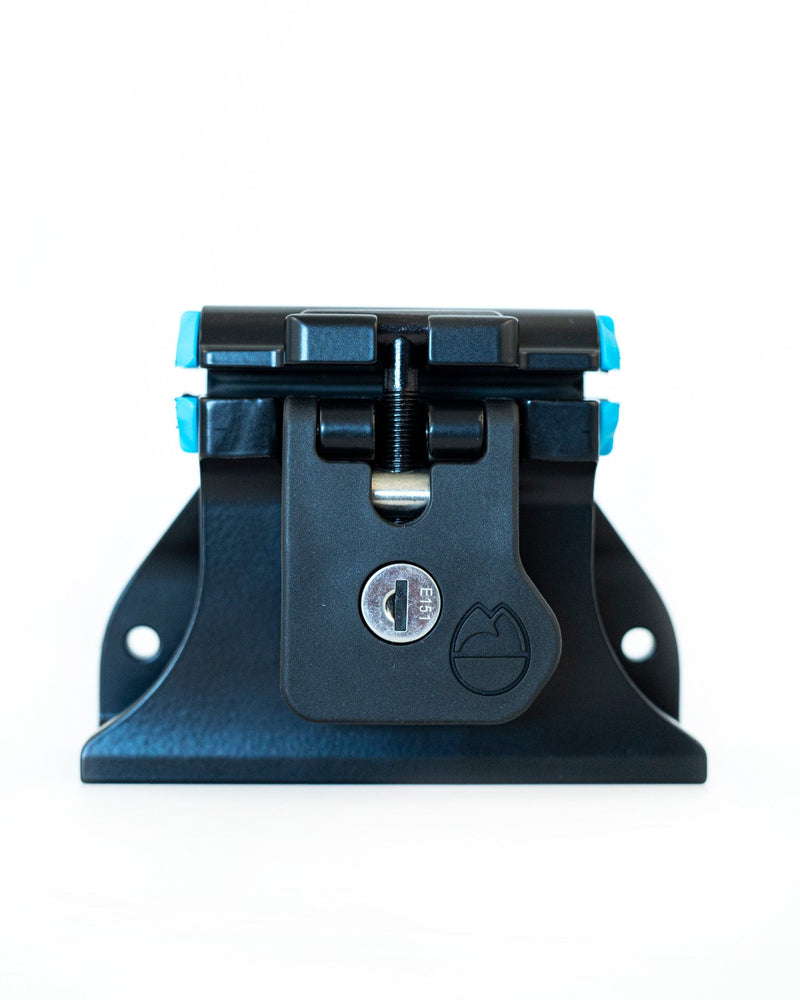

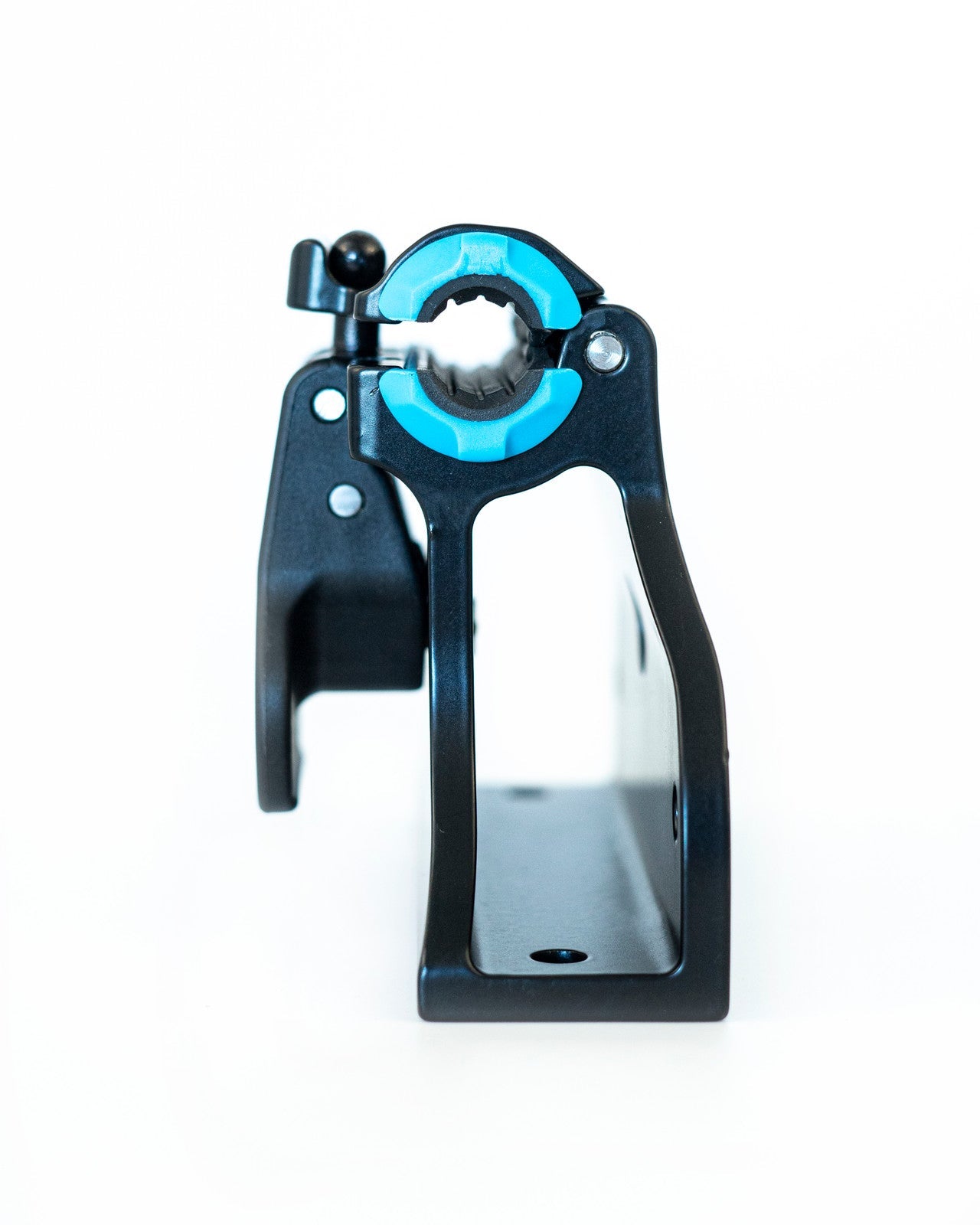

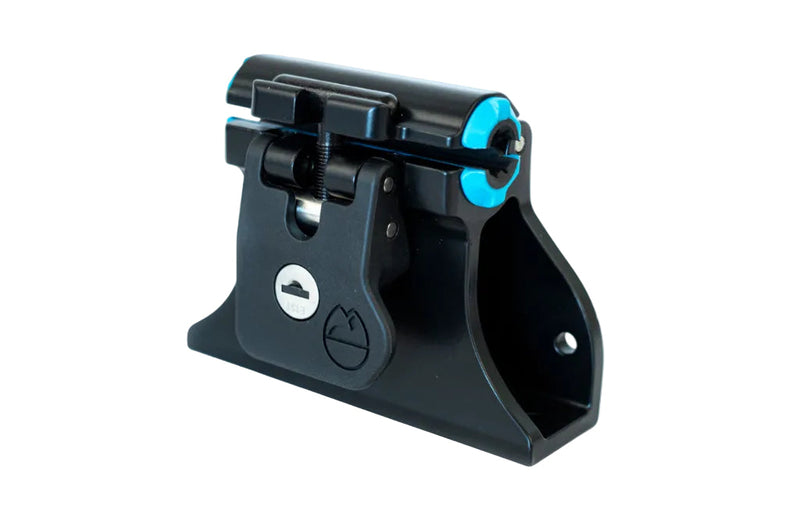

DropTop is our next-generation locking fork mount, refined from years of real-world use. Built for vans, utes and truck beds, it keeps road, gravel and MTB bikes secure inside your setup. We wanted to make this clean, simple and secure.

Hitch Size Guide

Add to cart

Store Lookup

Fast Express shipping

Lifetime Warranty

Spare Parts & Customer service

Summary and Specs

Add On expandable:

Capacity: 1

1

Fender Compatible: Yes

Yes

Hitch Size:

Weight:

Wheelbase: +30cm

+30cm

Lockable:

Maximum Tire Width: 5"

5"

Max weight per bike: 35 lbs / 16 kgs

35 lbs / 16 kgs

Min/max wheel size:

Tilt enabled:

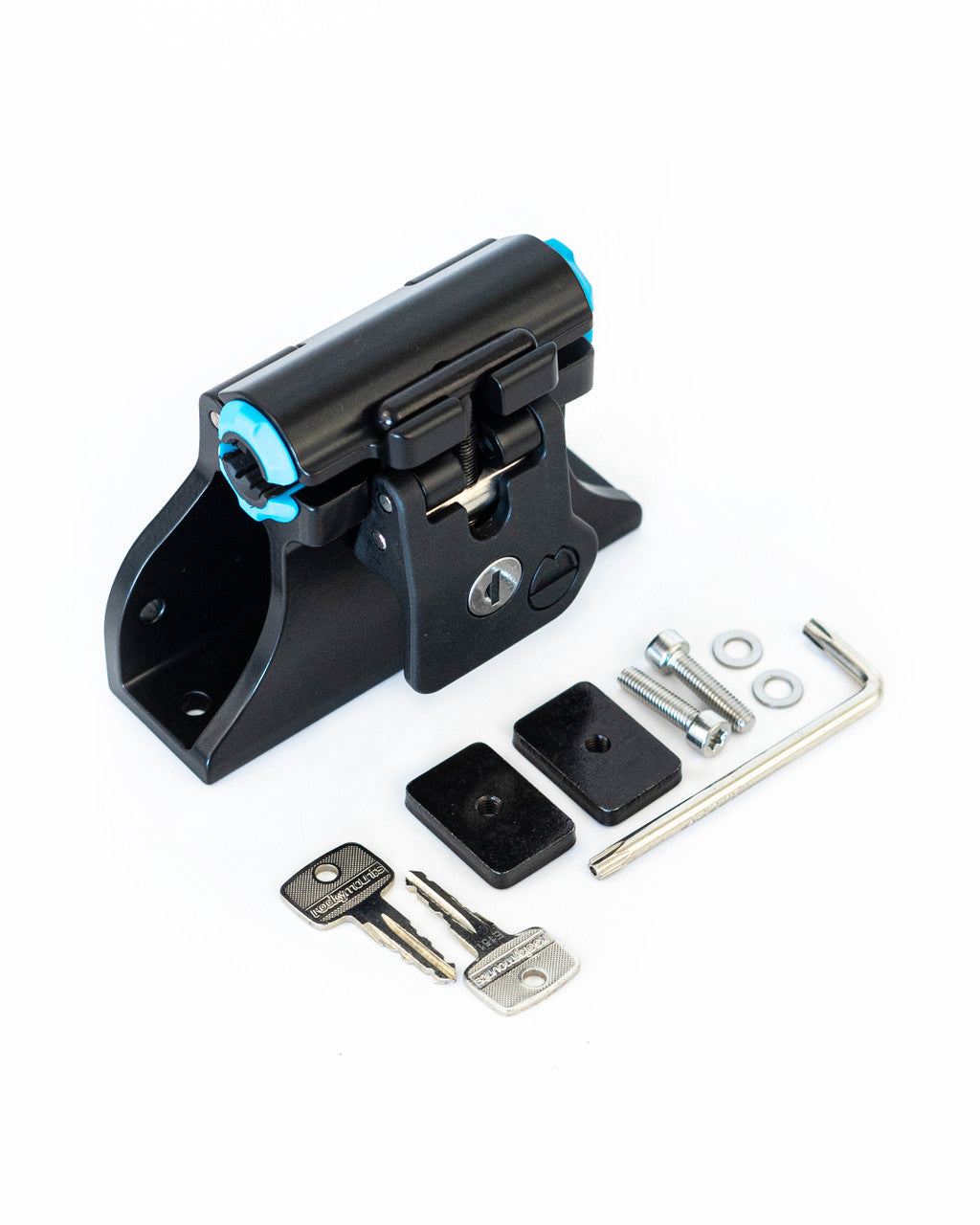

What's included:

(1) DropTop locking fork mount
(1) Lock core and keys
(1) Track hardware
(1) User manual

Yes

DropTop Instructions.pdf Fork Mount Dimension Chart 2022 A 1.pdf

- The only locking thru-axle track mount compatible with truck and van tracks
- Fits 12mm, 15mm, and 20mm thru-axles up to 110mm wide (20mm requires shim removal)
- Vertical and horizontal mounting options

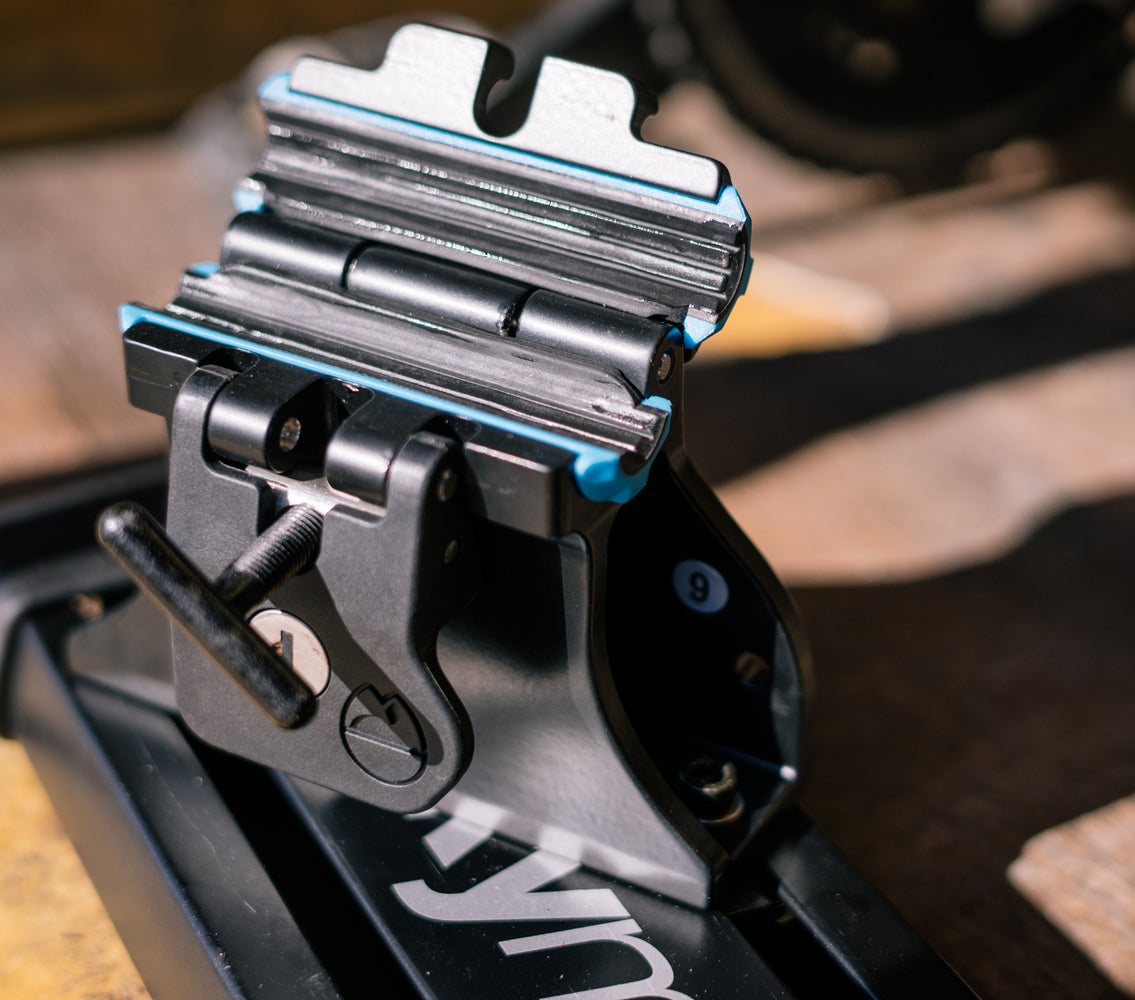

- TPU overmolded shim eliminates need to switch shims for 12mm or 15mm axles

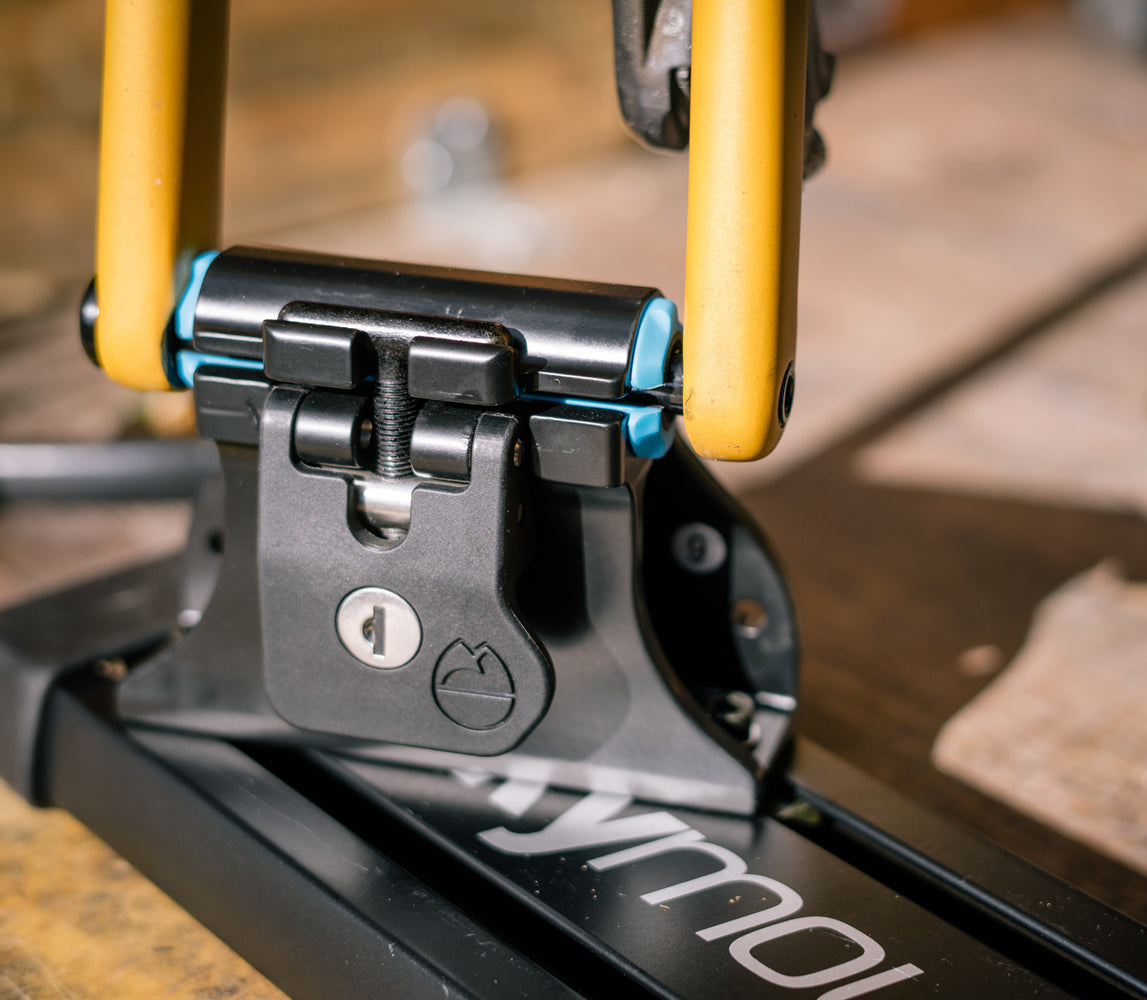

- Anti-theft TPU surface provides friction to prevent axle removal when locked
- Compatible with quick release bikes using 9mm QR Dummy Axle (sold separately)
- Wide mouth opening for easy bike loading

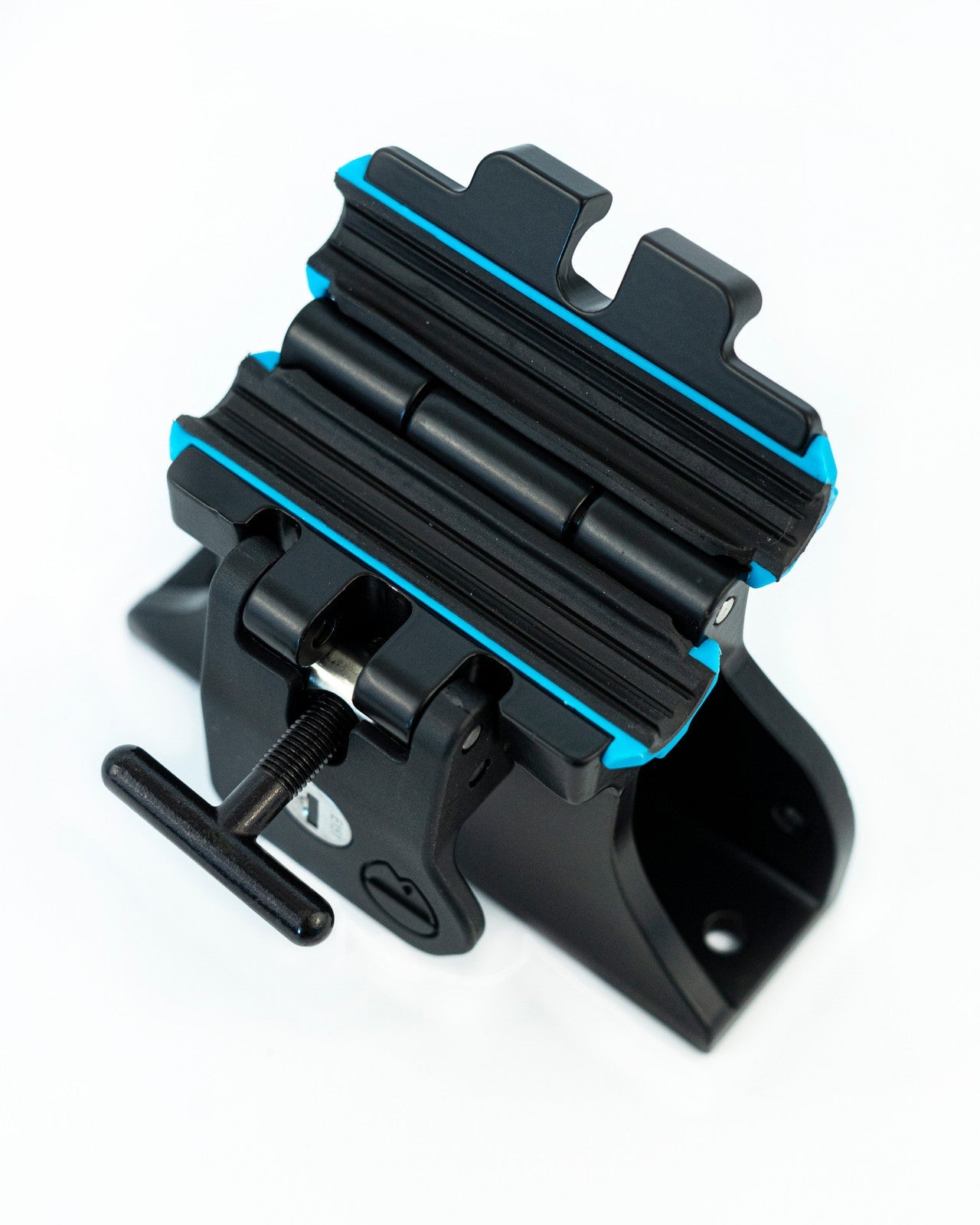

- Locking T-bolt adjusts for a tighter hold, securing the thru-axle when locked
- Carries 1 bike up to 45 lbs
- Fits all Toyota Tacoma and Tundra Bed Rails 2010-2024
- Track plates measure 24mm x 35mm x 6mm with M6 x 1mm tapped hole, installable in either orientation
- Not compatible with L-Track by USA Cargo Control without additional adapter plate

Specs
- Bike capacity: 1 bike
- Weight capacity: 45 lbs
- Track plate dimensions: 24mm x 35mm x 6mm
- Mounting hardware: M6 x 1mm tapped holes
- Compatible axle sizes: 12mm, 15mm (up to 110mm width)

When will my order ship?

Most of the time if an order is placed before noon on a week day, the order will ship out the same day. However, during busy periods it can take up to 2 business days to dispatch so if you have a trip coming up please contact us and let us know your situation so we can prioritise getting it to you before you leave.

Shipping Rates

Orders under 7kg - $10
Orders over 7kg - $50

Shipping days:

Orders ship only Monday through Friday; we do not ship on Saturday, Sunday, or public holidays.

Tracking Your Order
Check your email. You will receive emails regarding the status of your order at the address you entered during checkout. Tracking information is typically emailed within 24 hours after your order ships.

Shipping Restrictions

We do not deliver to a PO Box
Due to demand for certain products we cannot guarantee every product's availability for immediate shipment. Rocky Mounts ships orders in full, but upon special request we can sometimes fulfill partial shipments.
We are unable to ship to multiple addresses at this time.
Shipping charges are non-refundable. In the event of a return or if a package isn't deliverable by a carrier - only the cost of the merchandise is eligible for a refund.

Have A Question?
If you would like to contact us please use the form on our contact page and we will endeavor to respond ASAP.

Made to Mount Anywhere.

Minimal profile. Maximum reliability.

Mount It and Forget It.

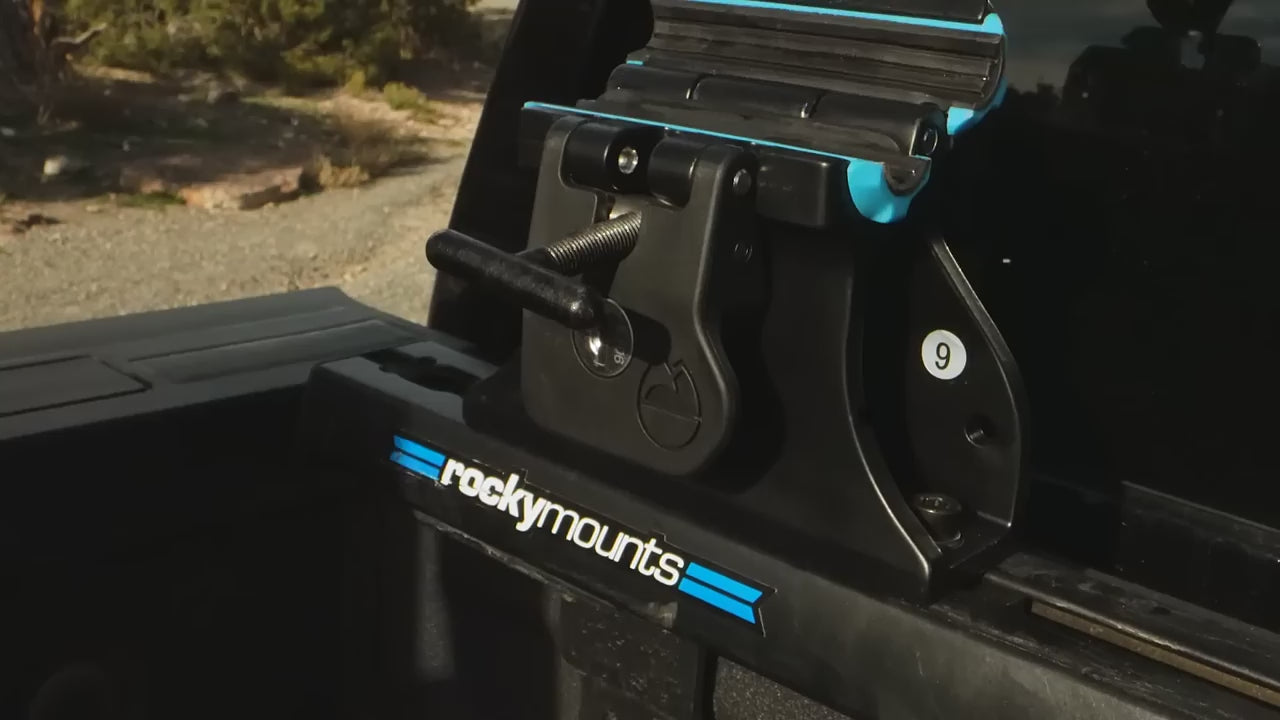

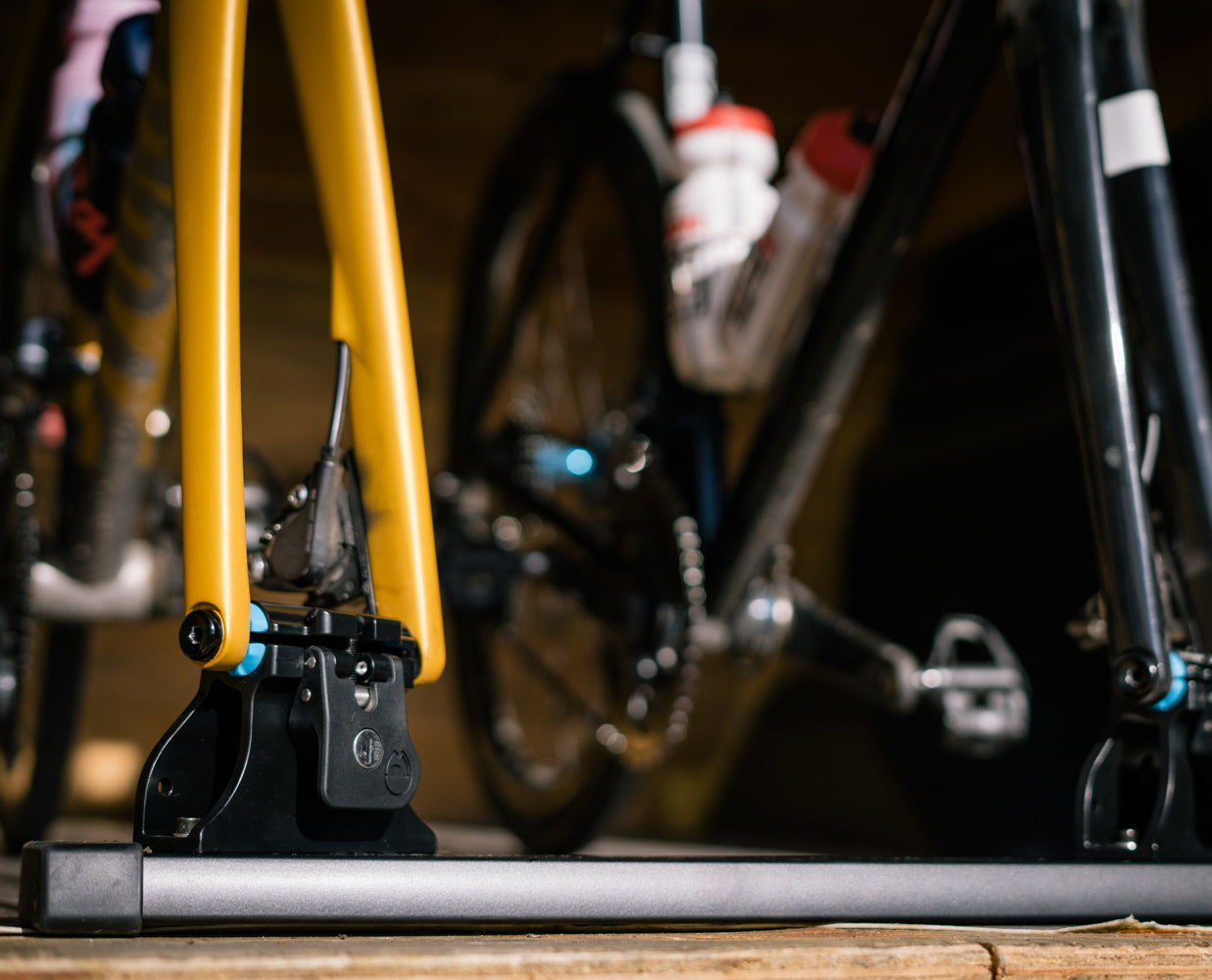

Built for custom layouts and creative installs, DropTop keeps your bike locked in without taking up unnecessary space.
Simple, secure fork mounting that stays out of the way and ready for every trip.

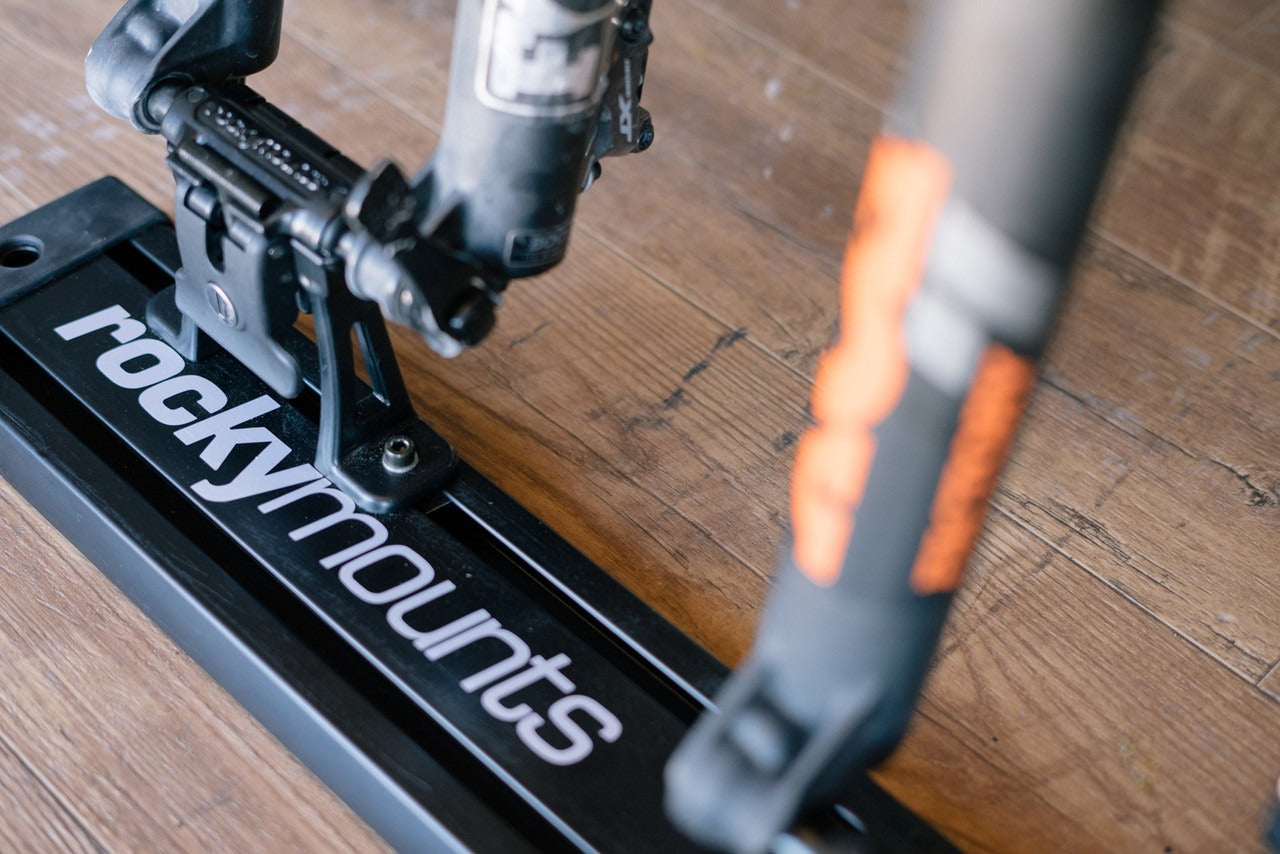

Any Bike. Any Axle.

Compatible with a wide range of fork standards, DropTop is built to fit modern bikes without the guesswork. Compatible with 12mm, 15mm, and 20mm thru-axles up to 110mm wide. Designed to keep your setup flexible across bikes and builds.
